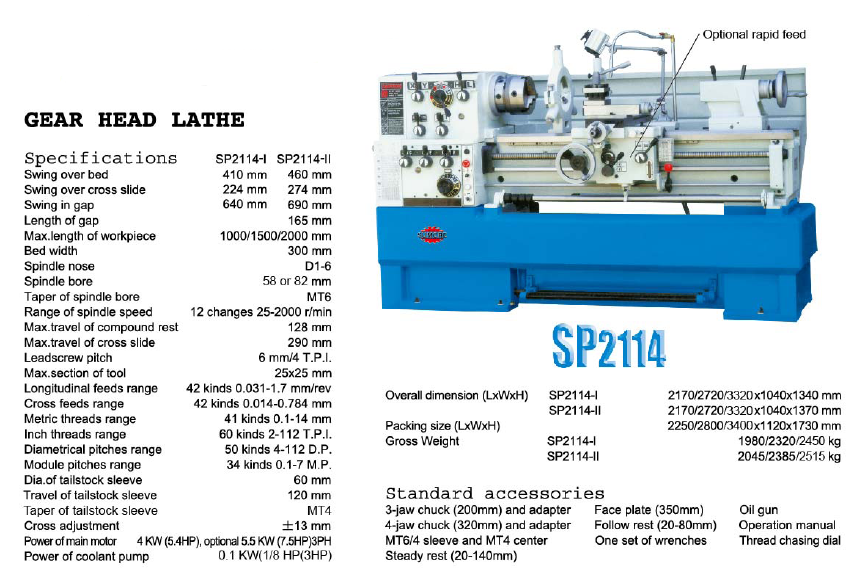

• Model: SP2114-I
• Swing over Bed: 410 mm
• Swing over Cross Slide: 224 mm
• Swing over Gap: 640 mm
• Distance Between Centers: 1,000 / 1,500 mm
• Width of Bed: 300 mm
• Spindle Bore: 58 mm
• Spindle Taper: MT6
• Spindle Nose: D1-6
• Range of Spindle Speeds: 25 – 2,000 rpm
• Range of Longitudinal Feeds: 0.031 – 1.700 mm/rev
• Range of Traverse Feeds: 0.014 – 0.784 mm/rev
• Compound Slide Travel: 128 mm
• Cross Slide Travel: 290 mm
• Tailstock Quill Travel: 120 mm
• Tailstock Quill Taper: MT4
• Number of Inch Threads: 60
• Range of Inch Threads: 2 – 112 TPI
• Number of Metric Threads: 41
• Range of Metric Threads: 0.1 – 14.0 mm
• Main Motor Power: 4,000 / 5,500 W (5.4 / 7.5 HP)
• Coolant Power: 100 W (1/8 HP)
• Overall Dimensions (L × W × H): 2,170 / 2,720 × 1,040 × 1,340 mm
• Packing Size (L × W × H): 2,250 / 2,800 × 1,120 × 1,730 mm
• Gross Weight: 1,980 / 2,320 kg
